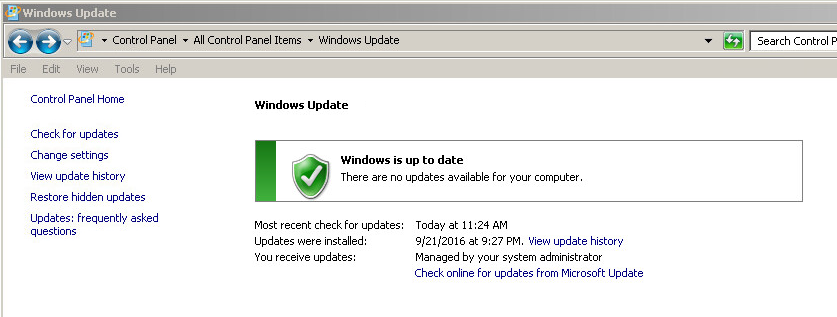

We started the new patching Microsoft has put forward (cumulative updates) and one of our Citrix vDisks had an issue with it. Windows Update would say that there were no updates available:
But we very obviously have updates to deploy to it.
When I checked the ‘WindowsUpdate.log’ I saw the following:
2016-10-19 11:23:47:375 1532 2150 AU #############
2016-10-19 11:23:47:375 1532 2150 AU ## START ## AU: Search for updates
2016-10-19 11:23:47:375 1532 2150 AU #########
2016-10-19 11:23:47:375 1532 2150 AU <<## SUBMITTED ## AU: Search for updates [CallId = {7BA17D86-EF4B-470B-AF35-2A0271736B9E}]
2016-10-19 11:23:47:375 1532 1f40 Agent *************
2016-10-19 11:23:47:375 1532 1f40 Agent ** START ** Agent: Finding updates [CallerId = AutomaticUpdates]
2016-10-19 11:23:47:375 1532 1f40 Agent *********
2016-10-19 11:23:47:375 1532 1f40 Agent * Online = Yes; Ignore download priority = No
2016-10-19 11:23:47:375 1532 1f40 Agent * Criteria = "IsInstalled=0 and DeploymentAction='Installation' or IsPresent=1 and DeploymentAction='Uninstallation' or IsInstalled=1 and DeploymentAction='Installation' and RebootRequired=1 or IsInstalled=0 and DeploymentAction='Uninstallation' and RebootRequired=1"
2016-10-19 11:23:47:375 1532 1f40 Agent * ServiceID = {3DA21691-E39D-4DA6-8A4B-B43877BCB1B7} Managed
2016-10-19 11:23:47:375 1532 1f40 Agent * Search Scope = {Machine}
2016-10-19 11:23:47:375 1532 1f40 Setup Checking for agent SelfUpdate
2016-10-19 11:23:47:375 1532 1f40 Setup Client version: Core: 7.6.7601.23453 Aux: 7.6.7601.23453
2016-10-19 11:23:47:407 1532 1f40 Misc Validating signature for C:\Windows\SoftwareDistribution\SelfUpdate\wuident.cab with dwProvFlags 0x00000080:
2016-10-19 11:23:47:407 1532 1f40 Misc Microsoft signed: NA
2016-10-19 11:23:47:407 1532 1f40 Misc WARNING: Cab does not contain correct inner CAB file.
2016-10-19 11:23:47:407 1532 1f40 Misc Validating signature for C:\Windows\SoftwareDistribution\SelfUpdate\wuident.cab with dwProvFlags 0x00000080:
2016-10-19 11:23:47:422 1532 1f40 Misc Microsoft signed: NA
2016-10-19 11:23:47:422 1532 1f40 Setup Wuident for the managed service is valid but not quorum-signed. Skipping selfupdate.
2016-10-19 11:23:47:422 1532 1f40 Setup Skipping SelfUpdate check based on the /SKIP directive in wuident
2016-10-19 11:23:47:422 1532 1f40 Setup SelfUpdate check completed. SelfUpdate is NOT required.
2016-10-19 11:23:47:610 1532 1f40 PT +++++++++++ PT: Synchronizing server updates +++++++++++
2016-10-19 11:23:47:610 1532 1f40 PT + ServiceId = {3DA21691-E39D-4DA6-8A4B-B43877BCB1B7}, Server URL = http://wswsus02.healthy.bewell.ca/ClientWebService/client.asmx
2016-10-19 11:23:58:516 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:23:58:547 1532 1f40 Agent WARNING: Failed to evaluate Installed rule, updateId = {7A967290-323C-4217-A32C-E4AA1574D7D7}.202, hr = 80070057
2016-10-19 11:24:00:172 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:00:204 1532 1f40 Agent WARNING: Failed to evaluate Installable rule, updateId = {7A967290-323C-4217-A32C-E4AA1574D7D7}.202, hr = 80070057
2016-10-19 11:24:01:844 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:05:891 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:05:938 1532 1f40 Agent WARNING: Failed to evaluate Installed rule, updateId = {BC84255B-F762-4A50-9C52-F3BED35DAC65}.200, hr = 80070057
2016-10-19 11:24:07:797 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:07:844 1532 1f40 Agent WARNING: Failed to evaluate Installable rule, updateId = {BC84255B-F762-4A50-9C52-F3BED35DAC65}.200, hr = 80070057
2016-10-19 11:24:09:688 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:14:750 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:14:782 1532 1f40 Agent WARNING: Failed to evaluate Installed rule, updateId = {8B225A49-634E-4AED-AF0C-81344E9918B9}.200, hr = 80070057
2016-10-19 11:24:16:547 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:16:594 1532 1f40 Agent WARNING: Failed to evaluate Installable rule, updateId = {8B225A49-634E-4AED-AF0C-81344E9918B9}.200, hr = 80070057
2016-10-19 11:24:18:375 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:22:516 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:22:547 1532 1f40 Agent WARNING: Failed to evaluate Installed rule, updateId = {2A5A8394-828E-49FC-837D-930A2832EADB}.204, hr = 80070057
2016-10-19 11:24:24:235 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:24:266 1532 1f40 Agent WARNING: Failed to evaluate Installable rule, updateId = {2A5A8394-828E-49FC-837D-930A2832EADB}.204, hr = 80070057
2016-10-19 11:24:25:953 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:29:094 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:29:125 1532 1f40 Agent WARNING: Failed to evaluate Installed rule, updateId = {697B6E33-B11F-4BDC-8756-1B84513DE656}.203, hr = 80070057
2016-10-19 11:24:30:813 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:30:844 1532 1f40 Agent WARNING: Failed to evaluate Installable rule, updateId = {697B6E33-B11F-4BDC-8756-1B84513DE656}.203, hr = 80070057
2016-10-19 11:24:32:547 1532 1f40 Handler FATAL: UH: 0x80070057: EvaluateApplicability failed in CCbs::EvaluateApplicability
2016-10-19 11:24:32:625 1532 1f40 PT +++++++++++ PT: Synchronizing extended update info ++++++++++
0x80070057 = E_INVALIDARG
The ‘CBS’ (Component Based Servicing) is reporting an Invalid Argument. Microsoft keeps a more verbose log of the component based servicing here: C:\Windows\Logs\CBS
This log reported the following:
2016-10-19 11:28:37, Info CBS Appl: Selfupdate, Component: x86_microsoft-windows-c..ityclient.resources_31bf3856ad364e35_0.0.0.0_cs-cz_4543013c0104990b (6.1.7601.22843), elevation:2, lower version revision holder: 0.0.0.0
2016-10-19 11:28:37, Info CBS Applicability(ComponentAnalyzerEvaluateSelfUpdate): Component: x86_microsoft-windows-c..ityclient.resources_31bf3856ad364e35_6.1.7601.22843_cs-cz_23d88f3b30536415, elevate: 2, applicable(true/false): 0
2016-10-19 11:28:37, Info CSI 00000097@2016/10/19:17:28:37.798 CSI Transaction @0x7a64040 initialized for deployment engine {d16d444c-56d8-11d5-882d-0080c847b195} with flags 00000002 and client id [25]"TI5.30550574_957084783:1/"
2016-10-19 11:28:37, Info CSI 00000098@2016/10/19:17:28:37.798 CSI Transaction @0x7a64040 destroyed
2016-10-19 11:28:37, Info CBS Failed to get component version: 6.1.7601.22653 [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to enumerate store versions on component: x86_microsoft-windows-c..ityclient.resources_31bf3856ad364e35_6.1.7601.22843_da-dk_c1126f6226996014 [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to enumerate related component versions on component: x86_microsoft-windows-c..ityclient.resources_31bf3856ad364e35_6.1.7601.22843_da-dk_c1126f6226996014 [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to load current component state [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to find or add the component family [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS ComponentAnalyzerEvaluateSelfUpdate call failed. [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to evaluate self update [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to evaluate non detect parent update [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to evaluate non parent [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS failed to evaluate single applicability [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to evaluate applicability [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to get applicability on updates [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Error CBS Failed to call external evaluate applicability on package: Package_49_for_KB3003743~31bf3856ad364e35~amd64~~6.1.1.1, Update: Trigger_1 [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to evaluate external applicability for package update: 3003743-498_neutral_PACKAGE [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Error CBS Failed to call external evaluate applicability on package: Package_for_KB3003743_SP1~31bf3856ad364e35~amd64~~6.1.1.1, Update: 3003743-498_neutral_PACKAGE [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Failed to evaluate external applicability for package update: 3003743-594_neutral_PACKAGE [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Error CBS Failed to call external evaluate applicability on package: Package_for_KB3003743~31bf3856ad364e35~amd64~~6.1.1.1, Update: 3003743-594_neutral_PACKAGE [HRESULT = 0x80070057 - E_INVALIDARG]
2016-10-19 11:28:37, Info CBS Session: 30550574_974273603 initialized by client WindowsUpdateAgent.
2016-10-19 11:28:37, Info CBS Read out cached package applicability for package: Package_for_KB2846960~31bf3856ad364e35~amd64~~6.1.1.3, ApplicableState: 112, CurrentState:112
2016-10-19 11:28:37, Info CBS Session: 30550574_974429865 initialized by client WindowsUpdateAgent.
2016-10-19 11:28:37, Info CBS Read out cached package applicability for package: Package_for_KB3084135~31bf3856ad364e35~amd64~~6.1.1.0, ApplicableState: 112, CurrentState:112
2016-10-19 11:28:37, Info CBS Session: 30550574_974429866 initialized by client WindowsUpdateAgent.
2016-10-19 11:28:37, Info CBS Read out cached package applicability for package: Package_for_KB2884256~31bf3856ad364e35~amd64~~6.1.1.1, ApplicableState: 112, CurrentState:11
An error appeared to occur at this point (there were a few):
Failed to get component version: 6.1.7601.22653
Failed to enumerate store versions on component: x86_microsoft-windows-c..ityclient.resources_31bf3856ad364e35_6.1.7601.22843_da-dk_c1126f6226996014
Failed to enumerate related component versions on component: x86_microsoft-windows-c..ityclient.resources_31bf3856ad364e35_6.1.7601.22843_da-dk_c1126f6226996014

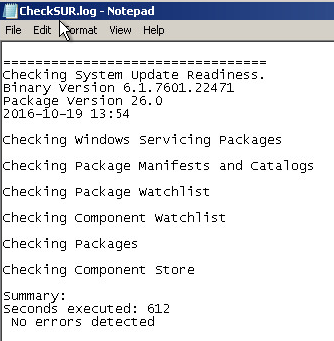

The standard MS method of troubleshooting Windows Update is to run the ‘CheckSUR’ utility. This was the result of running that tool:
No errors detected. Awesome. So I have a problem but this tool reports everything is peachy.

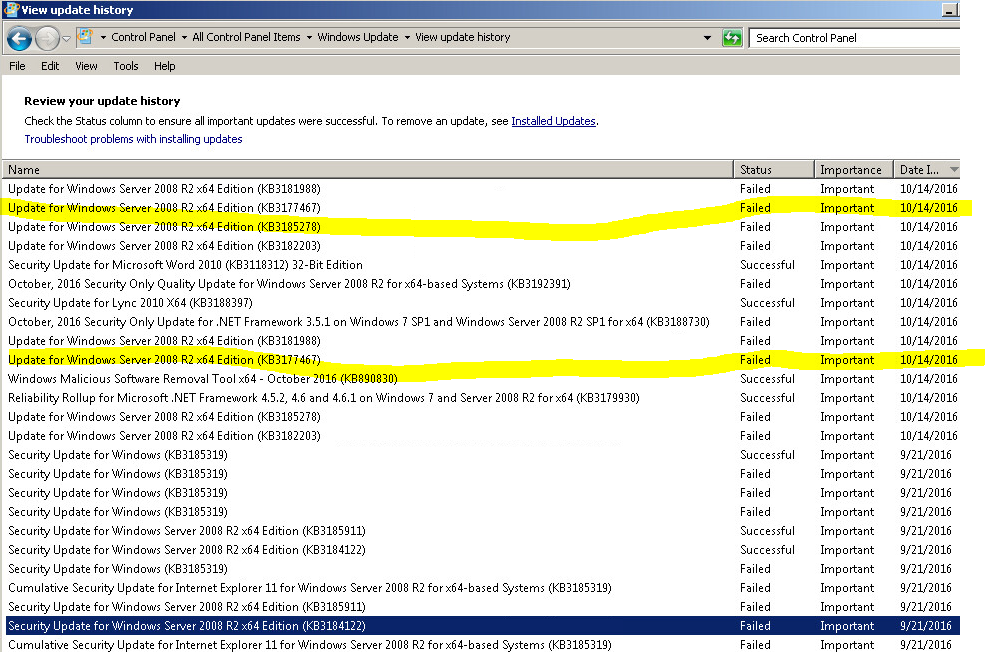

So when I looked at Windows Update I saw numerous ‘failed’ updates.
I took one that was failed and downloaded it (KB3177467) and attempted to manually install it.
This time I got a different error:
2016-10-19 14:23:56:231 8904 1834 Handler :: START :: Handler: CBS Install
2016-10-19 14:23:56:231 8904 1834 Handler :::::::::
2016-10-19 14:23:56:231 8904 1834 Handler Starting install of CBS update 9F6C41F5-6D0F-454F-9380-CBF75E6A1CBF
2016-10-19 14:23:56:231 8904 1834 Handler CBS package identity: Package_for_KB3177467~31bf3856ad364e35~amd64~~6.1.1.1
2016-10-19 14:23:56:231 8904 1834 Handler Installing self-contained with source=C:\Windows\SoftwareDistribution\Download\db0ec1ac1c6e6b90b22e49fa1c7d8216\windows6.1-kb3177467-x64.cab, workingdir=C:\Windows\SoftwareDistribution\Download\db0ec1ac1c6e6b90b22e49fa1c7d8216\inst
2016-10-19 14:24:01:200 1532 aa4 Report REPORT EVENT: {CA27992C-3791-43CF-8ED3-18B05939AB84} 2016-10-19 14:23:56:200-0600 1 181 101 {37EA312C-2424-4158-B30F-E614AA28DA4A} 501 0 wusa Success Content Install Installation Started: Windows successfully started the following update: Update for Windows (KB3177467)
2016-10-19 14:24:02:590 8904 18a8 Handler FATAL: CBS called Error with 0x800736b3,
2016-10-19 14:24:02:653 8904 1834 Handler FATAL: Completed install of CBS update with type=0, requiresReboot=0, installerError=1, hr=0x800736b3
2016-10-19 14:24:02:668 8904 1834 Handler :::::::::
2016-10-19 14:24:02:668 8904 1834 Handler :: END :: Handler: CBS Install
0x800736B3 - ERROR_SXS_ASSEMBLY_NOT_FOUND
Looking at the CBS.LOG showed me the following:
2016-10-19 14:24:01, Info CBS Setting ExecuteState key to: CbsExecuteStateInitiateRollback | CbsExecuteStateFlagAdvancedInstallersFailed
2016-10-19 14:24:01, Info CSI 0000008a Performing 2 operations; 2 are not lock/unlock and follow:
Install (5): flags: 0 tlc: [83df49984213f0fecd0a31e01bc60f57, Version = 6.1.7601.23505, pA = PROCESSOR_ARCHITECTURE_AMD64 (9), Culture neutral, VersionScope = 1 nonSxS, PublicKeyToken = {l:8 b:31bf3856ad364e35}, Type neutral, TypeName neutral, PublicKey neutral]) ref: ( flgs: 00000000 guid: {d16d444c-56d8-11d5-882d-0080c847b195} name: [l:154{77}]"Package_2_for_KB3177467~31bf3856ad364e35~amd64~~6.1.1.1.3177467-3_neutral_LDR" ncdata: [l:4{2}]"16") thumbprint: (null)
Install (5): flags: 0 tlc: [466e94be62b208e51d86c55eba4b950e, Version = 6.1.7601.23505, pA = PROCESSOR_ARCHITECTURE_AMD64 (9), Culture neutral, VersionScope = 1 nonSxS, PublicKeyToken = {l:8 b:31bf3856ad364e35}, Type neutral, TypeName neutral, PublicKey neutral]) ref: ( flgs: 00000000 guid: {d16d444c-56d8-11d5-882d-0080c847b195} name: [l:154{77}]"Package_2_for_KB3177467~31bf3856ad364e35~amd64~~6.1.1.1.3177467-4_neutral_LDR" ncdata: [l:4{2}]"16") thumbprint: (null)
2016-10-19 14:24:01, Error CSI 0000008b@2016/10/19:20:24:01.356 (F) d:\win7sp1_gdr\base\wcp\componentstore\storelayout.cpp(8701): Error STATUS_SXS_ASSEMBLY_NOT_FOUND originated in function ComponentStore::CRawStoreLayout::QueryComponentUnstagedFiles expression: (null)
[gle=0x80004005]
2016-10-19 14:24:01, Error CSI 0000008c (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4475159# from CCSDirectTransaction::PerformChangeAnalysis(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 0000008d (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4475158# from CCSDirectTransaction::PrepareForCommit(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 0000008e (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4475157# from CCSDirectTransaction::ExamineTransaction(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 0000008f (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4475156# from CCSDirectTransaction_IRtlTransaction::ExamineTransaction(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 00000090@2016/10/19:20:24:01.481 (F) d:\win7sp1_gdr\base\wcp\componentstore\storelayout.cpp(8701): Error STATUS_SXS_ASSEMBLY_NOT_FOUND originated in function ComponentStore::CRawStoreLayout::QueryComponentUnstagedFiles expression: (null)
[gle=0x80004005]
2016-10-19 14:24:01, Error CSI 00000091 (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4477915# from CCSDirectTransaction::PerformChangeAnalysis(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 00000092 (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4477914# from CCSDirectTransaction::PrepareForCommit(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 00000093 (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4477913# from CCSDirectTransaction::GenerateComponentChangeList(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 00000094 (F) STATUS_SXS_ASSEMBLY_NOT_FOUND #4477912# from Windows::COM::CPendingTransaction::ExtractInformationFromRtlTransaction(...)[gle=0xd0150004]
2016-10-19 14:24:01, Error CSI 00000095 (F) HRESULT_FROM_WIN32(ERROR_SXS_ASSEMBLY_NOT_FOUND) #4474948# from Windows::COM::CPendingTransaction::IStorePendingTransaction_Analyze(...)[gle=0x800736b3]
2016-10-19 14:24:01, Error CSI 00000096 (F) HRESULT_FROM_WIN32(ERROR_SXS_ASSEMBLY_NOT_FOUND) #4474674# from Windows::ServicingAPI::CCSITransaction::ICSITransaction_Commit(Flags = 102 (0x00000066), pSink = NULL, disp = 0, coldpatching = FALSE)[gle=0x800736b3]
2016-10-19 14:24:01, Error CSI 00000097 (F) HRESULT_FROM_WIN32(ERROR_SXS_ASSEMBLY_NOT_FOUND) #4474673# 315357 us from Windows::ServicingAPI::CCSITransaction_ICSITransaction::Commit(flags = 0x00000066, pSink = NULL, disp = 0)
[gle=0x800736b3]
2016-10-19 14:24:01, Info CBS Setting ExecuteState key to: ExecuteStateNone
2016-10-19 14:24:01, Info CBS Setting RollbackFailed flag to 0
2016-10-19 14:24:01, Info CBS Clearing HangDetect value
2016-10-19 14:24:01, Info CBS Saved last global progress. Current: 0, Limit: 1, ExecuteState: ExecuteStateNone
2016-10-19 14:24:01, Error CBS Exec: Failed to commit CSI transaction to execute changes. [HRESULT = 0x800736b3 - ERROR_SXS_ASSEMBLY_NOT_FOUND]
2016-10-19 14:24:01, Info CSI 00000098@2016/10/19:20:24:01.559 CSI Transaction @0x71be670 destroyed
2016-10-19 14:24:01, Info CBS Perf: InstallUninstallChain complete.
2016-10-19 14:24:01, Info CBS Failed to execute execution chain. [HRESULT = 0x800736b3 - ERROR_SXS_ASSEMBLY_NOT_FOUND]
2016-10-19 14:24:01, Error CBS Failed to process single phase execution. [HRESULT = 0x800736b3 - ERROR_SXS_ASSEMBLY_NOT_FOUND]
2016-10-19 14:24:01, Info CBS WER: Generating failure report for package: Package_for_KB3177467~31bf3856ad364e35~amd64~~6.1.1.1, status: 0x800736b3, failure source: Execute, start state: Staged, target state: Installed, client id: WindowsUpdateAgen
Ok, so now we can see the error but it still doesn’t give us much information. If I run ProcMon I can find *when* the error occurs somewhat easily because Windows Error Reporting kicks in as soon as the error occurs:

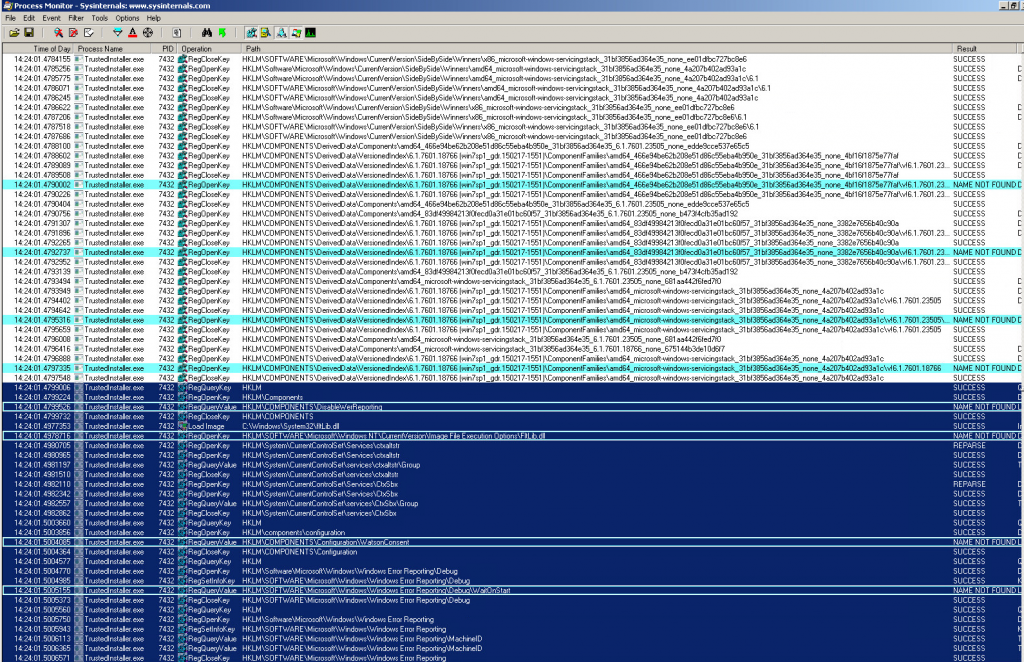

My apologies for such an ugly screenshot. The ‘Dark Blue’ highlight is when Windows Error Reporting kicked in. So the error must have occurred immediately preceding it. The only line that had a ‘NAME NOT FOUND’ without being a subkey search is the line that ends in v!6.1.7601.18766. If I browse to that location in the registry, here’s what I find:
So we are definitely missing that key. I have a bit of an advantage with the patches here as I have a duplicate of this server in another vDisk that was made around a year ago. Both are supposed to be at the same patch level, but it allows me to look through it’s COMPONENTS registry hive and see if it has that key…

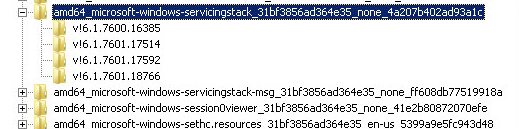

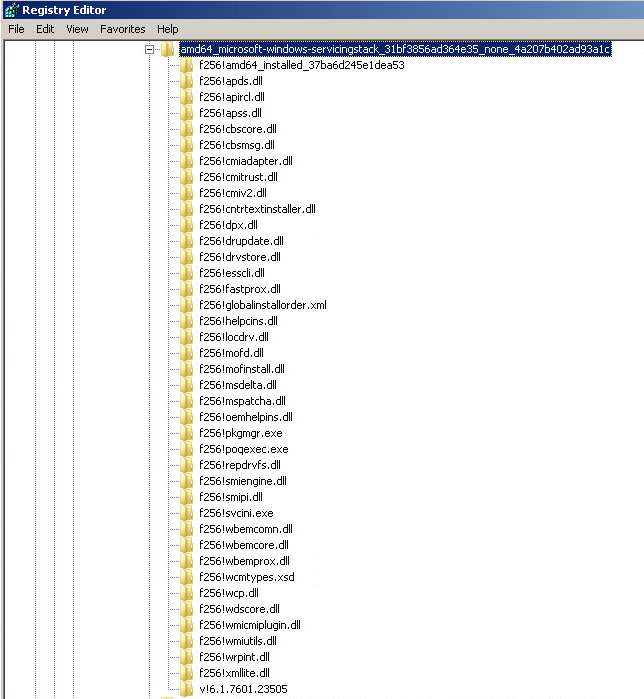

And I see a vastly different set of keys:
So I import that key and try running the update again…
Manually, it successfully updated. So now I tried running Windows Update again:

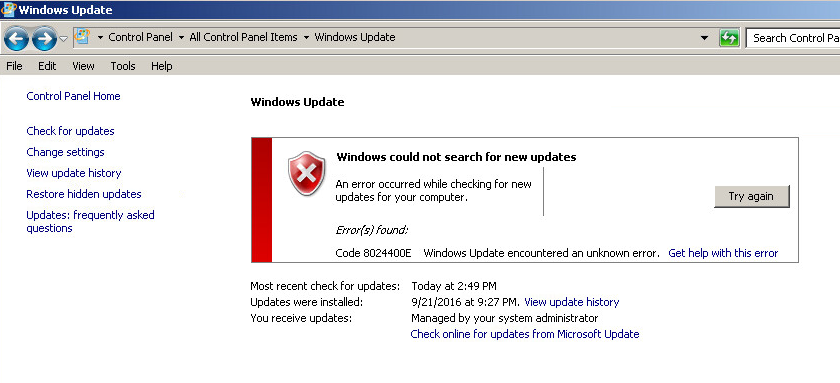

Code 8024400E. Which means… I just need to rerun ‘Try again’ about 6 times. Once I do:

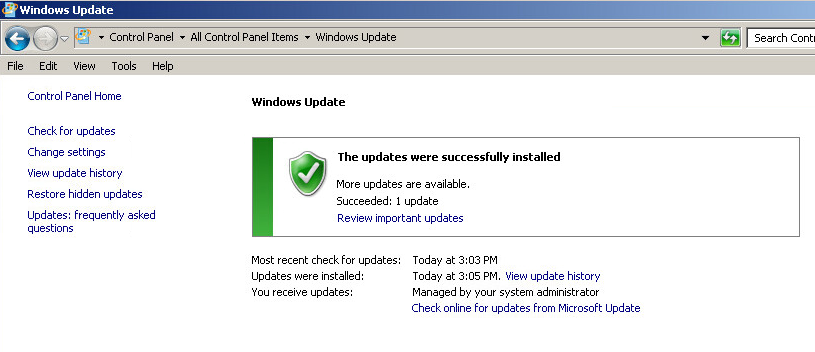

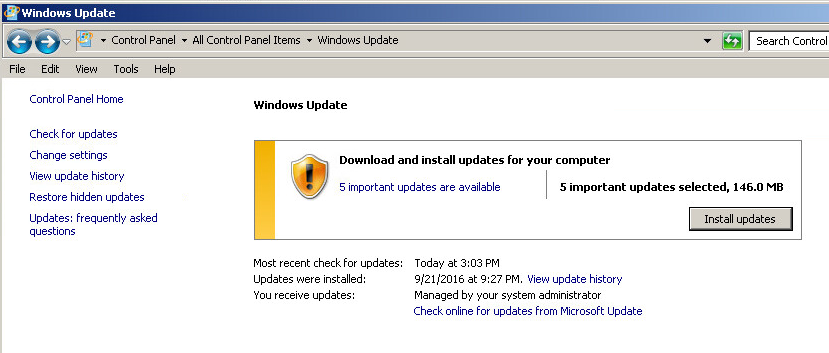

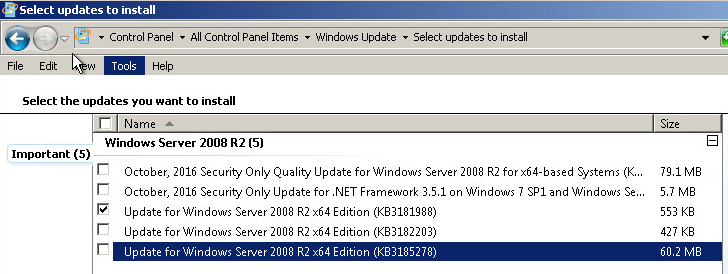

Ok, we have updates. As a test I’m going to do just one:

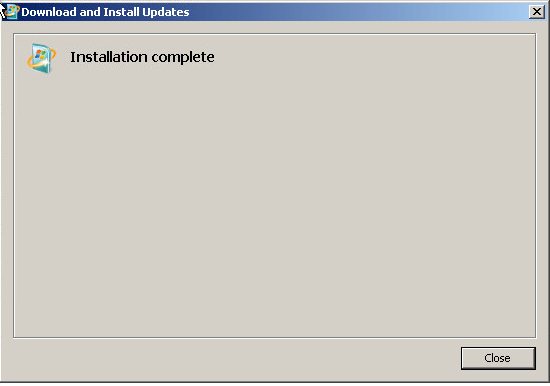

Success!

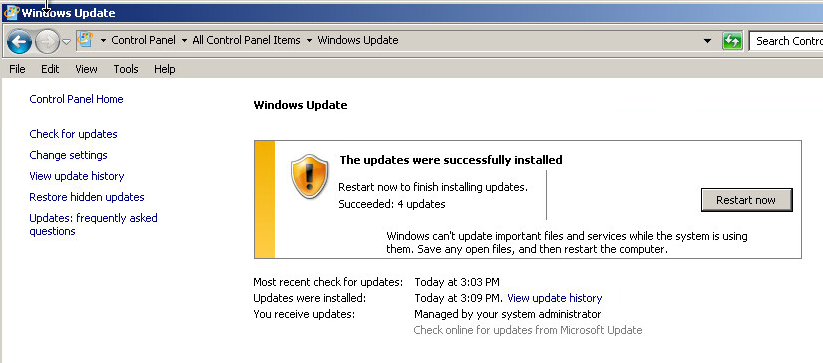

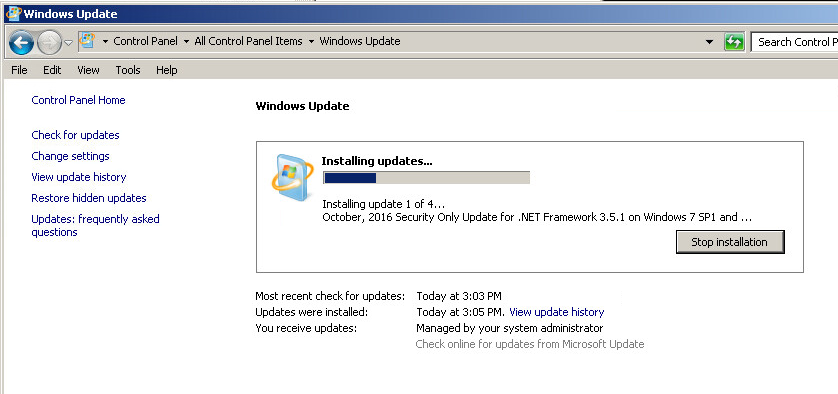

So I’ll try the rest:
Success!
It appears we can install patches again. I’m concerned the COMPONENTS hives were so different but without a solid understanding of how that hive comes to be (I wish you could rebuild it) I think I may be stuck with assuming that a failed update or maybe a corrupt registry key is at fault for that missing key breaking updates. I guess we’ll see what happens next month to see if we can patch Windows :/
